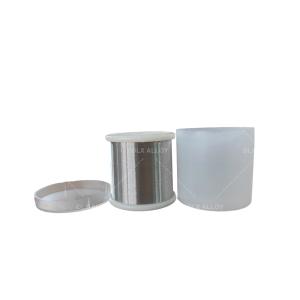

99.99% Nickel200 Nickel Pure Ni Wire Np1 Wire

Name: 9999 Nickel200 Nickel Pure Ni Wire Np1 Wire
Brand: Victory
Price: 200 USD

Wholesale 99.99% Nickel200 Nickel Pure Ni Wire Np1 Wire from china suppliers

Brand Name : Victory

Model Number : N4,N6,Ni200,Ni201

Certification : ISO9001,ROHS

Place of Origin : China

MOQ : 1KG

Price : $200-$300/kg

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 7-25 days

Packaging Details : Spool package with Carton box, Coil package with polybag,

Product name : Pure Nickel Wire

Grade : N4,N6,Ni200,Ni201

Material : Ni

Elongation (≥ %) : 35%

Ni(min) : 99%

Shape : Wire

size : 0.025-10mm

Ultimate Strength (≥ MPa) : 462

Resistance (μΩ.m) : 15

Melting Point : 1435-1446°C

Tensile Strength Ksi (min) : 462

Hardness : S,1/4H,1/2H,3/4H,H

Application : Industry,Electronic

M.O.Q : 1KG

Delivery : 7-25 days

Contact Now

Introduction:

1. Introducing the 0.025mm pure nickel wire, a fine and versatile product with a wide range of applications.

2. This ultra-fine wire, crafted from highly pure nickel metal, offers exceptional properties that make it an invaluable component in various industries.

3. With its precise diameter of 0.025mm, this pure nickel wire provides flexibility and adaptability in applications that demand intricate and delicate designs.

4. It finds extensive use in the electronics industry, where it serves as a conductor in microelectronics, integrated circuits, and compact electrical connections.

5. Its high corrosion resistance ensures long-lasting performance in demanding electronic environments.

Specification:

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Q&A:

Q: How is the quality of 0.025mm pure nickel wire assessed during production?
A: The quality of 0.025mm pure nickel wire is assessed through visual inspections, mechanical tests like tensile strength, and chemical composition analysis.

Q: What measures are taken to ensure the consistency of diameter in 0.025mm pure nickel wire?
A: Strict manufacturing processes and precision equipment are utilized to ensure the consistent diameter of 0.025mm pure nickel wire. Regular monitoring and calibration of machinery are performed to maintain accuracy.

Q: How is the corrosion resistance of 0.025mm pure nickel wire tested?
A: The corrosion resistance of 0.025mm pure nickel wire is typically evaluated through accelerated corrosion tests, exposing the wire to corrosive environments for a specific duration and analyzing any signs of corrosion or degradation.

99.99% Nickel200 Nickel Pure Ni Wire Np1 Wire

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)
