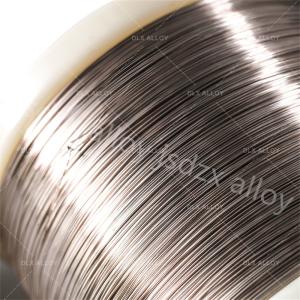

Pure Nickel Wire N6 Nickel Wire Ni 200/201 Wire

Name: Pure Nickel Wire N6 Nickel Wire Ni 200201 Wire
Brand: Victory
Price: 5 USD

Wholesale Pure Nickel Wire N6 Nickel Wire Ni 200/201 Wire from china suppliers

Brand Name : Victory

Model Number : N4,N6,Ni200,Ni201

Certification : ISO9001,ROHS

Place of Origin : China

MOQ : 1KG

Price : 5 - 99 kilograms US$45.00

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 7-25 days

Packaging Details : Spool package with Carton box, Coil package with polybag,

Product name : Pure Nickel Wire

Grade : N4,N6,Ni200,Ni201

Material : Ni

Elongation (≥ %) : 35%

Ni(min) : 99%

Shape : Wire

size : 0.025-10mm

Ultimate Strength (≥ MPa) : 462

Resistance (μΩ.m) : 15

Melting Point : 1435-1446°C

Tensile Strength Ksi (min) : 462

Hardness : S,1/4H,1/2H,3/4H,H

Application : Industry,Electronic

M.O.Q : 1KG

Delivery : 7-25 days

Contact Now

Introduction:

1. Introducing our pure nickel wire, a customizable and high-quality product designed to meet your specific requirements.

2. Crafted from highly pure nickel metal, this wire offers exceptional properties and can be tailored to suit various applications.

3. With our customizable options, you have the flexibility to specify the diameter, length, and surface finish of the pure nickel wire to meet your exact needs.

4. Whether you require a fine diameter wire for intricate electronic circuitry or a thicker gauge wire for robust industrial applications, we can provide a solution that matches your specifications.

Characteristics:

1. High Temperature Stability: Pure nickel wire maintains its physical and chemical properties even at high temperatures, making it suitable for use in high-temperature applications.

2. Versatility: Pure nickel wire finds applications in a wide range of industries, including electronics, aerospace, chemical processing, and jewelry making, due to its unique combination of properties.

3. Reliability: Pure nickel wire is known for its reliability and long service life, ensuring consistent performance in demanding environments.

4. Biocompatibility: Pure nickel wire is biocompatible, making it suitable for use in medical and healthcare applications.

Specification:

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Pure Nickel Wire N6 Nickel Wire Ni 200/201 Wire

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)
